WQ-320

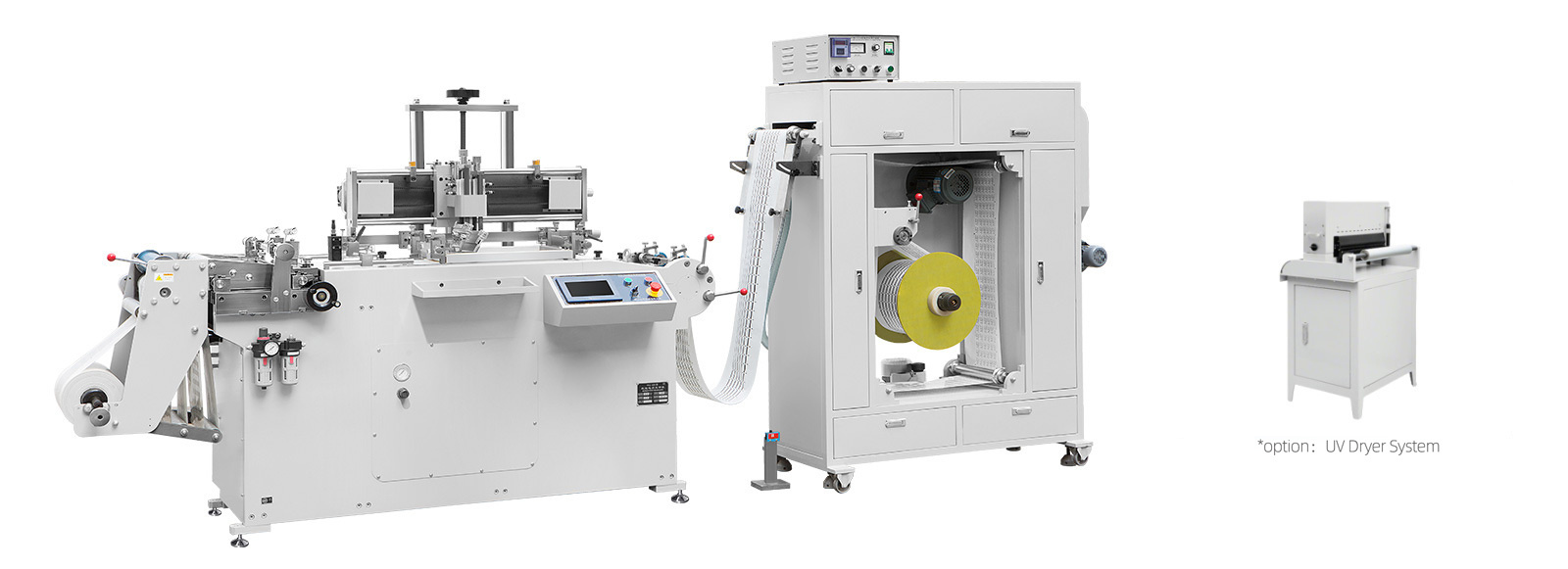

Screen Printing Machine
Product Description
The machine is used for printing roll material, such as PVC, OPP, Dacron, Security mark, adhesive tape, etc. The material forwarding and blade movement are controlled by servo motor, and the web-guiding is tracked by photocells. The machine has the characteristics of high accuracy color registration, steady material-feeding, automatic counter and alarm, convenient adjustment and compact structure, etc.
Product Description
The machine is used for printing roll material, such as PVC, OPP, Dacron, Security mark, adhesive tape, etc. The material forwarding and blade movement are controlled by servo motor, and the web-guiding is tracked by photocells. The machine has the characteristics of high accuracy color registration, steady material-feeding, automatic counter and alarm, convenient adjustment and compact structure, etc.
WQ-320
Main Technical Parameters
| Machine Model | WQ-320 |
| Printing Speed | 10-50(rpm) |
| Max. unwinding diameter | 450mm |
| Max. web width | 320mm |
| Max. printing width | 300mm |
| Max. printing length | 320mm |
| Accuracy | ±0.15mm |
| Main motor power | 1200w |
| Oven Power | 4100w |
| Dimensions(LxWxH) | 2400*950*1500mm |
| Oven dimension(LxWxH) | 1750*600*1800mm |
| Machine weight | About 1100kgs |
